Documentation

Pre-requisites

• R packages
• R version
• LaTeX
• Quarto

Introduction

Hello! Here you will find documentation for the quizzes, including how to add/delete/edit questions, adding files, navigating errors, and more. We use .qmd files to create the quizzes. Each quiz is written in a Quarto (.qmd) file that contains the quiz questions, code chunks, and required datasets. The .qmd file is then rendered into an HTML page. The generated HTML file is embedded into Quercus using an iframe so students can access the quiz directly from the course page.

Folder Structure

Each quiz is stored in its own folder. The folder contains the .qmd file and the dataset CSV files used in the quiz.

Example structure:

Quiz6/
  quiz6.qmd
  soccer_spi.csv
  music_tracks.csv
  game_publishers.csv
  training_scores.csv

This structure keeps the quiz file and its datasets organized in one location.

Quiz File Structure

Each .qmd quiz file contains several components.

The .qmd file includes the required dataset files and the JavaScript code used for the HTML implementation. For each question, the file contains a question description, a webr code chunk that students interact with, and another webr chunk that is hidden from students and contains the solution and the final answer.

Adding files

Files, such as csv files, are added on top of the qmd file, under resouces. For example, in quiz3a.qmd, we use two csv files, task_times.csv and scores.csv. We add these files under resources, as such:

---
title: "Quiz 3a"
format: live-html
engine: knitr
sidebar:
  style: docked
resources:
  - scores.csv
  - task_times.csv
---

JavaScript for Question Display

The .qmd file includes a JavaScript script that reads the URL parameter and hides the other questions.

<script>
document.addEventListener("DOMContentLoaded", () => {
  const params = new URLSearchParams(window.location.search);
  const showQ = params.get("q");

  if (showQ) {
    document.querySelectorAll("section[id]").forEach(section => {
      if (section.id !== showQ) section.style.display = "none";
    });
  }

  document.querySelectorAll(".quarto-title-block")
    .forEach(el => el.style.display = "none");

  document.querySelectorAll("section[id] > h2")
    .forEach(h => h.style.display = "none");
});
</script>

This script reads the q parameter from the URL, displays only the requested question, and hides the page title and section titles.

Supressing Library Import Output

To hide/supress library imports, nest the library calls inside suppressMessages. For example in a webR block,

#| echo: false
invisible(capture.output({
  suppressMessages(library(ggplot2))
  suppressMessages(library(skimr))
}))

This code block supresses messages while importing the libraries ggplot2 and skimr.

Questions and Student Code

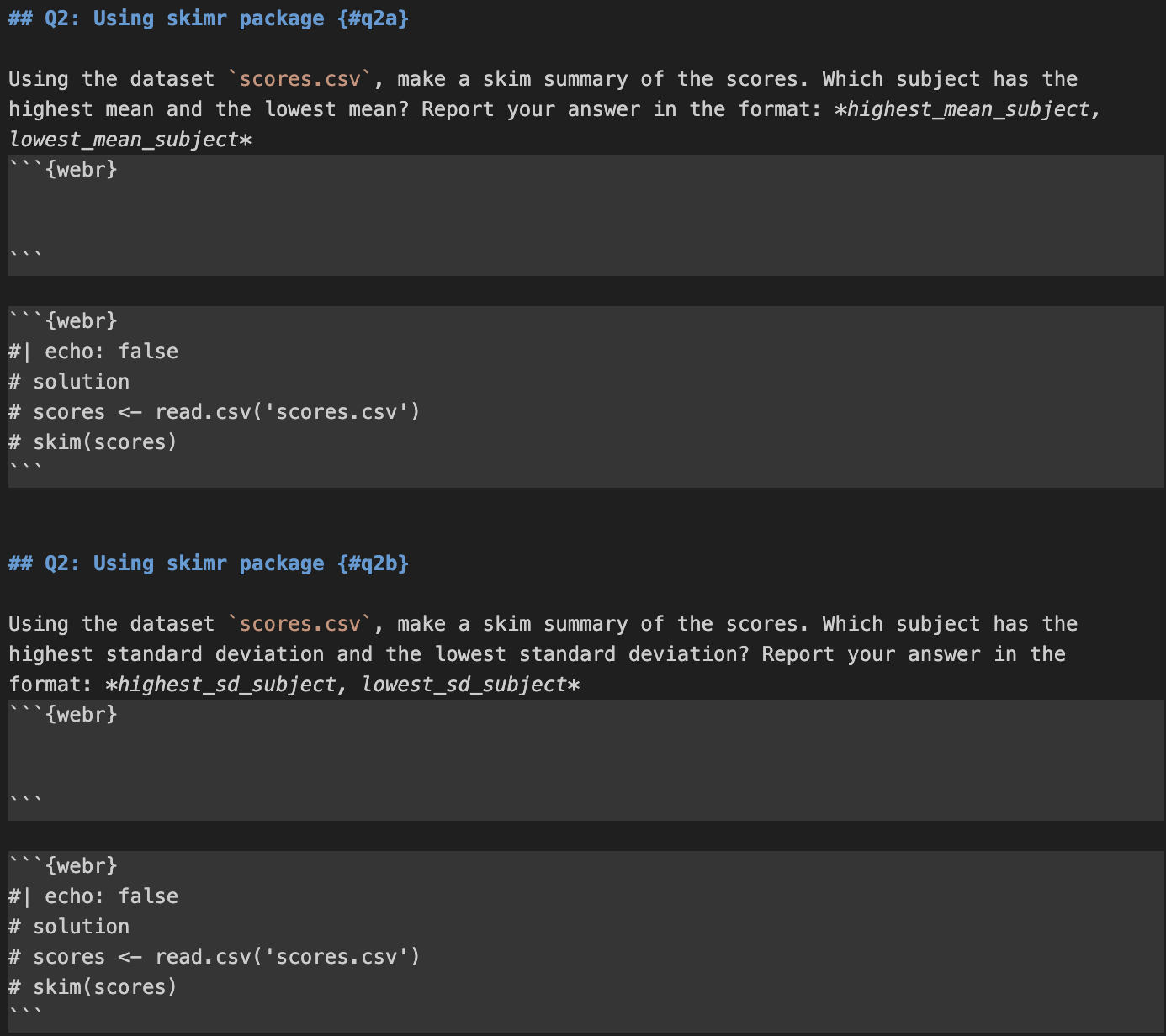

The first few quizzes typically have two files, where they contain two versions of the quizzes. In later quizzes, each question has two versions on the same file. For example, for question 2, there would be Q2a and Q2b. Each of these questions have a webr block, where students can enter their R code.

The solutions are displayed on the same qmd file underneath where students enter their code, with #| echo: false. This command (#| echo: false) prevents the webr block from being shown. Some files may also have #| output: false in the solution block, which prevents the output from being displayed.

Embedding in Quercus

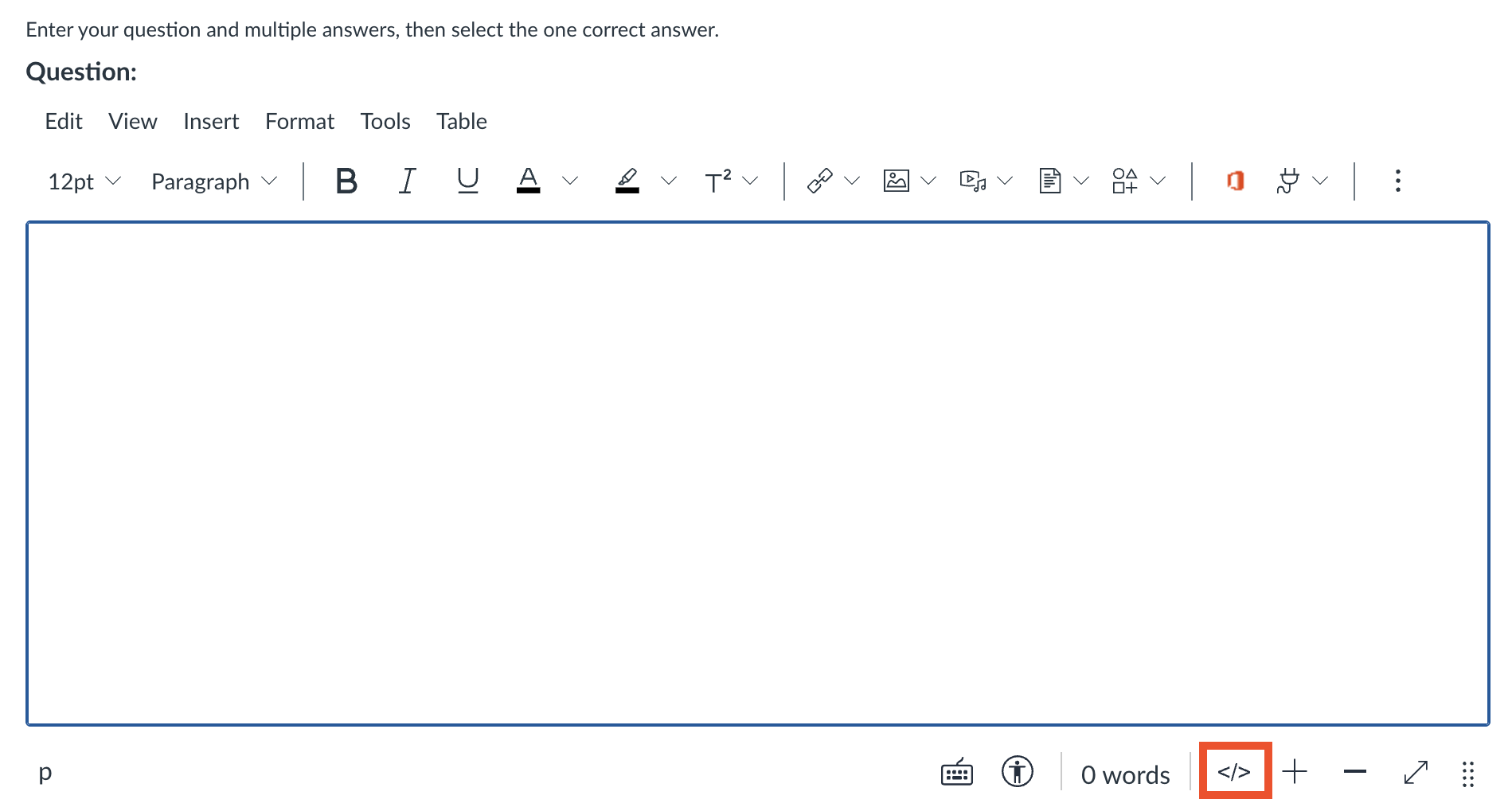

After rendering the .qmd file into HTML, the quiz page is embedded into Quercus using an iframe. Click on the </> symbol to embed a quiz question into Quescus.

Click on the same button again to view the embedded question.

Example HTML:

<p>
<iframe
title="embedded content"
src="https://nishanmudalige.github.io/STA258_Quiz_Questions/Quiz6/quiz6.html?q=q2a"
width="100%"
height="650px"
loading="lazy">
</iframe>
</p>

This allows students to access the interactive quiz directly inside Quercus.

Displaying a Specific Question

Each quiz HTML page may contain multiple questions. A URL parameter is used to display a specific question.

Example URL, located in src of the embedded HTML:

https://nishanmudalige.github.io/STA258_Quiz_Questions/Quiz6/quiz6.html?q=q2a

https://nishanmudalige.github.io/STA258_Quiz_Questions is the website where all the quizzes are located. Quiz6 is the folder at which the specific quiz is. quiz6.html is the quiz file, and q=q2a displays the specific question, question 2 version A. The q parameter indicates which question should be displayed.

Errors

NotReadableError

Sometimes, the following error may show up:

NotReadableError: Failed to execute 'readAsArrayBuffer' on 'FileReaderSync': The
requested file could not be read, typically due to permission problems that have
occurred after a reference to a file was acquired

Typically, the error disappears after refreshing the page. If the error still persists, run the command quarto add coatless/quarto-webr in terminal. Then, run quarto clean and then quarto render to reload all the files.

Common Commands

quarto clean

quarto clean is used to tidy up all the extra files that Quarto creates when you render a document.

To clean all output formats, run quarto clean --all.

quarto preview

quarto preveiw lets you render your .qmd document on the fly without creating final output files in your project folder or having to push your code. It automatically refreshes in the browser when you save changes, and is great for checking formatting, plots, and code outputs before doing a full render.
